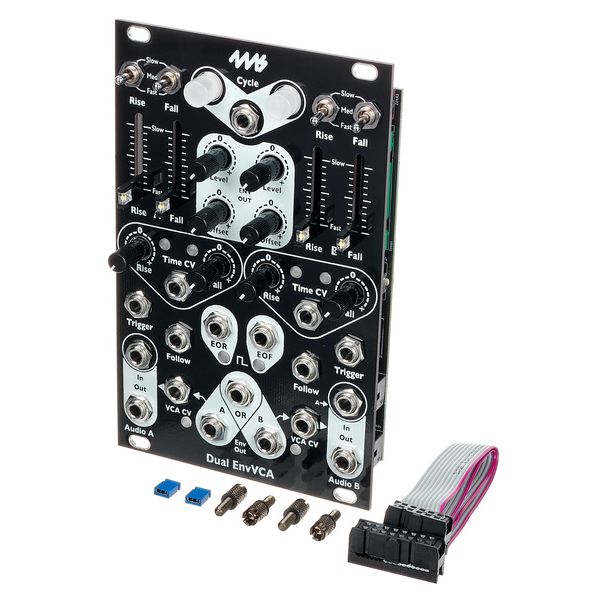

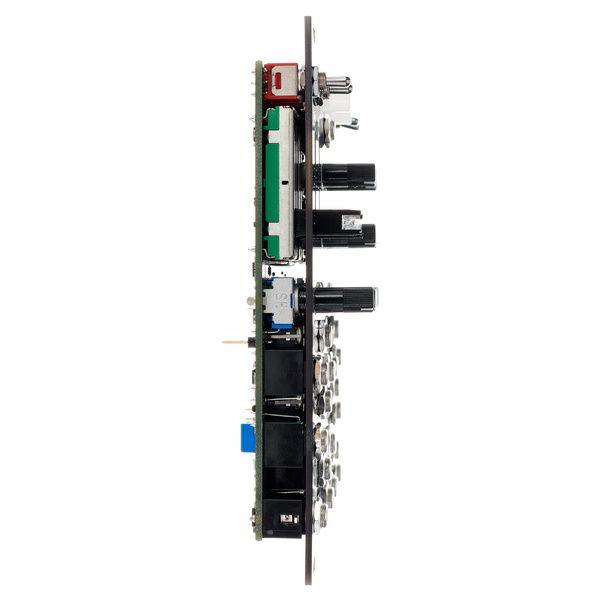

4ms Dual EnvVCA

Eurorack Module Two-channel function generator with VCA Per channel: AD envelope with fader for rise and fall times (each with three selectable time ranges) Level and offset control for envelope output (range: -10 V to +10 V) Trigger input, signal input and cycle button CV input for controlling envelope times with adjustable intensity for rise and fall VCA audio input and output Envelope output is normalised to VCA CV input End of Rise and End of Fall trigger outputs Envelope signal outputs and OR логический выход Потребляемая мощность: 156 мА (+12 В) / 131 мА (-12 В) Ширина: 16 U Глубина: 24 мм
